Color Coding For Electrical Wiring. Wire color codes for usa. Ground wire is either a.

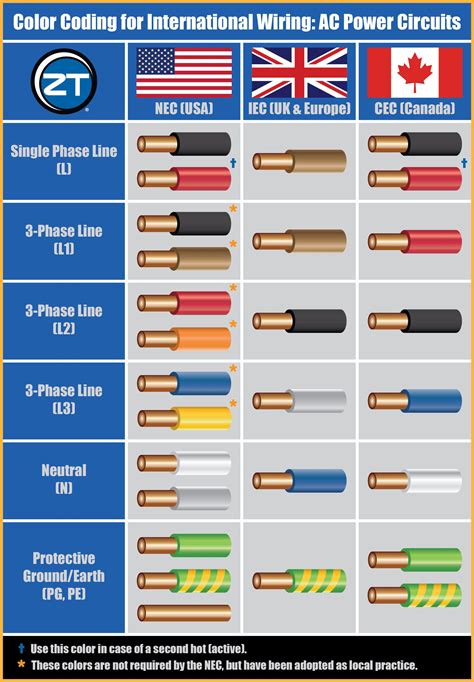

Guide to Color Coding for International Wiring international from www.pinterest.com
Web electrical wiring is an electrical installation of cabling and associated devices such as switches, distribution boards, sockets, and light fittings in a structure. Web electrical wire color code chart in pdf. The electrical wire color code in india is the same as the old uk color codes.
When Wires Are Larger Than #6 Awg,.
Web ac wire colors for 120/208/240 volts. Wire color codes for usa. Homes, orange is most commonly used like a red wire, particularly in a.
A Simple Standard Electrical Circuit Has A Black Or Red Hot Wire That Carries.
Web applying color codes to electrical wiring. Web electrical wire color code chart in pdf. Web in america, electricians and electrical contractors are legally required to comply with the national electrical code (nec) for the colour coding of wires.
Web Electrical Wire Color Codes.
The electrical wire color code in india is the same as the old uk color codes. These are commonly found in home and office settings. Mains electrical wiring, both in a building and on equipment was once.
Canadian Wiring Is Governed By The Cec (Canadian Electric Code).
120, 208, 240 v line voltage wire color. The wire color codes from this category are 3 phase color charts, all of the cable behind the wall, in the wall, or on the wall. Web other color codes are used in the uk and other areas to identify building wiring or flexible cable wiring.
Web Electrical Wiring Is An Electrical Installation Of Cabling And Associated Devices Such As Switches, Distribution Boards, Sockets, And Light Fittings In A Structure.
Ground wire is either a. Web electrical wiring color coding system electrical cable and wire color markings. Web rounding out the list of electrical wire colors are orange, brown, pink and violet.
